Here we introduce the working principle of filter presses....
BBNEP filter presses are featured with high quality, versatility and reliability. It can achieve the clarification and reuse of wastewater. In addition, it is widely used in many industries, especially for mining, municipal or industrial wastewater disposal. However, how can filter press turn waste water into reusable water? You will find answers in the following parts.

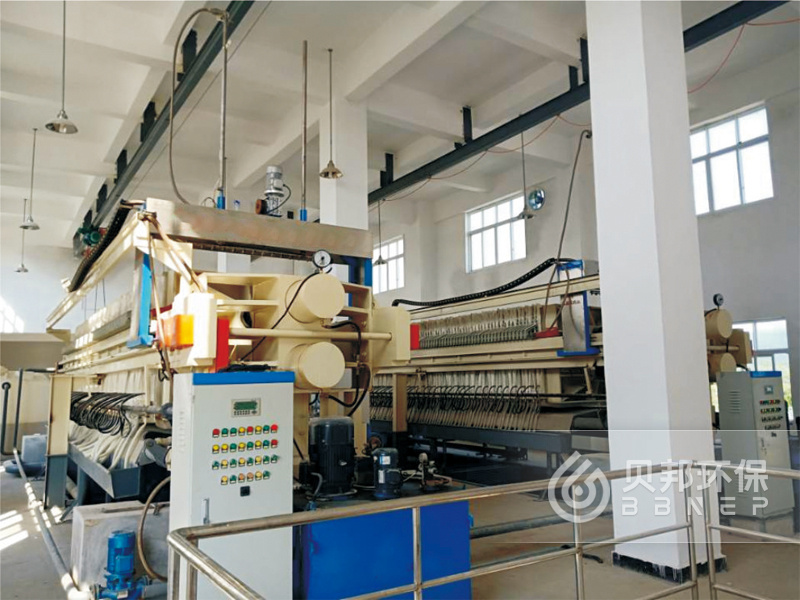

Before filtration, filter plates lined with filter cloth will be tightly pressed by hydraulic pressure or mechanical pressure. These pressed plates will form multiple closed filter chambers. Then, the slurry pump will force slurry into the empty filter chambers, which means that filtration begins. Due to filter cloth, the solid materials are captured between each two filter plates, while filtrate water passes through filter cloth and exits by channels on the filter plates. During filtration process, all filter plates are closed tightly. The slurry solids gradually fill all chambers. Then the slurry pump will stop and the hydraulic pressure for holding filter plates will be released. At this time, you can orderly pull the filter plates to discharge dewatered solid material cakes. In terms of chamber filter press with automatic plate shifter, you can control plate shifter to automatically pull filter plates, so as to improve working efficiency. This is a complete filtration process.
Besides filter press, we also provide some accessory equipment for improving working efficiency, such as automatic drip tray, cake storage hopper for filter press, belt conveyor and so on.
The hydraulic pressure and pump pressure is decided by property of slurry. What’s more, if you do not know how to choose suitable filter press for solid liquid separation, we can provide you professional advice according to materials treated. We have our own laboratory, which can provide material testing and analysis.
1. Good sealing effect. 2. The filter cloth is easy, fast and safe to load and unload. 3. The moisture content of the filter cake is low. Compared with the original membrane filter press, the moisture content is reduced by 5%-10%, and the filter cake falls off automatically.
1. Electro-hydraulic, automatic pressure maintaining, manual pulling plate. 2. Automatic plate puller: controlled by a hydraulic motor puller plate appliance or an electric motor puller plate appliance. The puller plate can be numerically controlled to buffer, extending the service life of the filter plate handle, and can be paused or restarted at any time according to production needs.
1. Temperature of hydraulic oil: The temperature of hydraulic oil is generally maintained at 10 ~ 65°C. Excessively high oil temperature can vaporize the oil, generate water vapor, and cause corrosion to the accessories in the machine.
Filtration Area:30-80㎡
Number of Filter Plates:23-62pieces
Filtration Area:15-40㎡
Number of Filter Plates:18-49pieces
Number of Filter Frame:19-50pieces
Filtration Area:10-20㎡
Number of Filter Plates:15-32pieces
Number of Filter Frame:16-33pieces
Filtration Area:15-40㎡
Number of Filter Plates:18-49pieces
